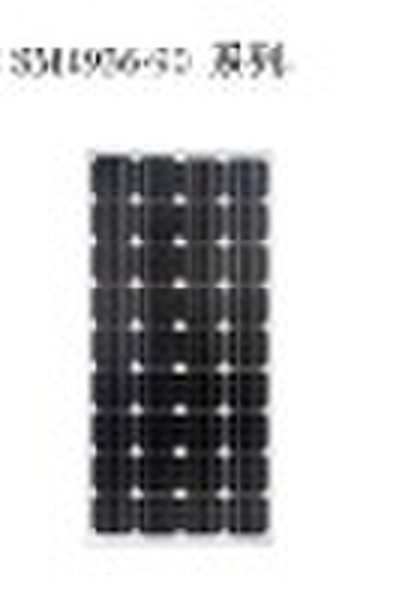

90 W solarmodule

Solarmodule 1. Electrical Characteristics Model SM4936-90 Series 80 85 90 95 Max. power at STC (Pm) 80 W 85 W 90 W 95 W Open-circuit voltage (Voc) 21.7 V 21.9 V 22.3 V 22.8 V Short-circuit current (Isc) 5.17 A 5.49A 5.81 A 5.86 A Voltage at Pmax (Vmp) 17.6 V 17.6 V 17.7 V 17.9 V Current at Pmax (Imp) 4.57 A 4.86 A 5.14 A 5.31 A Power tolerance ± 3% NOCT 48 °C ± 2 °C Temp. coefficient of Voc -0.35 %/°C Temp. coefficient of Isc 0.072 %/°C Temp. coefficient of Power -0.47 %/°C Max. series fuse rating 10 A Max. system voltage 1000 V Mechanical Characteristics and Qualification Test Parameters Cell size 125 × 125 mm Dimension of module 1200 × 540 × 35 mm Weight 8 Kg Packing Configuration 2 PCS/CTN 1230 × 570 × 80 mm Temperature cycling range -40 °C to + 85 °C Humidity freeze, damp heat 85 % RH Static load front and back 2400 Pascal Front loading 5400 Pascal Hailstone impact 25 mm at 23 m/s Test condition Irradiance:1000 W/m² Cell temperature:25 °C AM: 1.5
